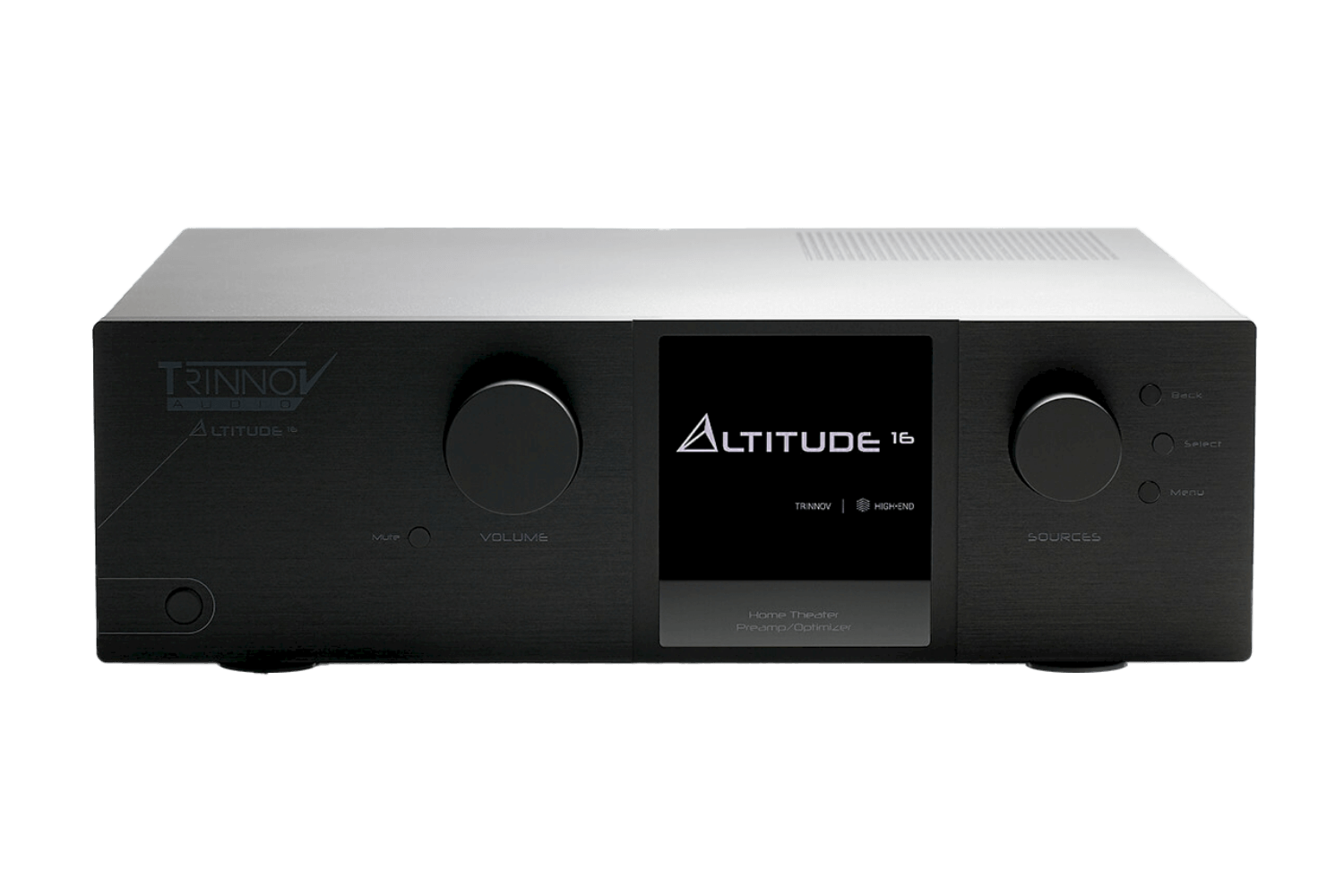

Trinnov Altitude 16 | HDMI 2.1 AV-Vorverstärker und Akustik-Prozessor (AKTION: Rabatt sichern!)
€ 18.201,05
Preise inkl. MwSt. Versandkostenfrei
Finanzierung? Sprechen Sie uns an!
Sofort verfügbar, Lieferzeit: 1-3 Tage
Beratung gewünscht?
Wir helfen gerne weiter! 02131 - 769412
Spezifikationen
OBJECT BASED DECODING
- Dolby Atmos® Native Decoding & Upmix:Up to 20 discrete channels
- Auro-3D® Native Decoding & Up-mix (Auromatic):Up to 13.1
- DTS:X® Pro:Up to 20 discrete channels
- Speaker Layouts support:All
- IMAX Enhanced:Yes

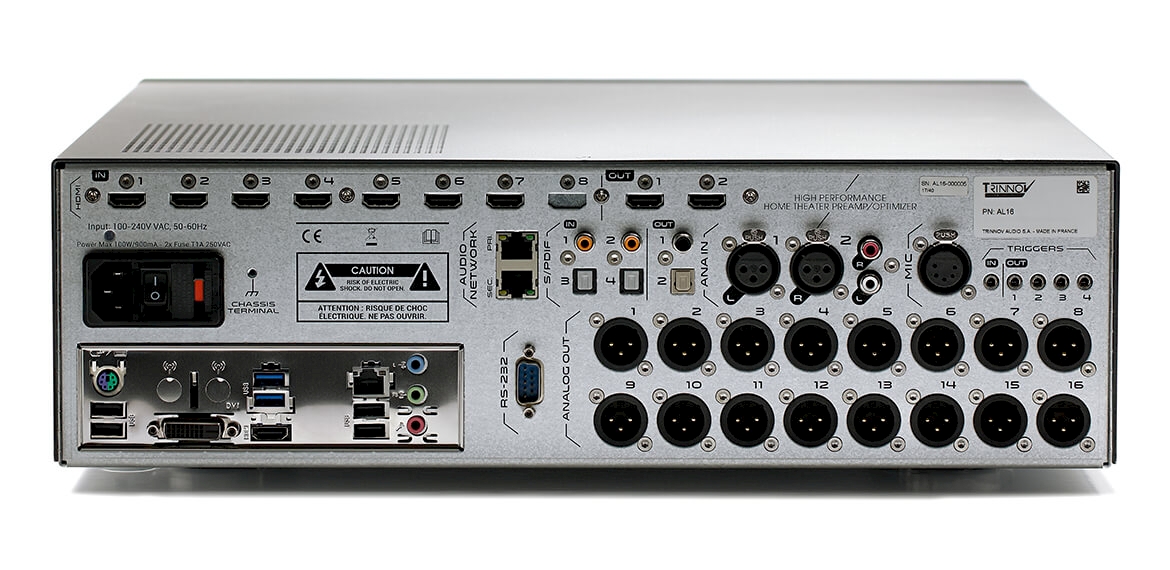

HDMI CONNECTIVITY
- Output 1:HDMI 2.1 / HDCP 2.3
- Output 2:HDMI 2.1 / HDCP 2.3
- Inputs:8
- HDR Support:HDR10, HDR10+, HLG, and Dolby Vision
- Maximum Resolution:4K 120Hz/8K 60Hz
- Maximum Bandwidth:40Gbps on all inputs and outputs
- Frame rates supported:4K 24/25/30/48/60/100/120, 8K 24/25/30/48/60
- ARC / eARC:Available on Output 1
- OSD:Main information displayed on-screen
DIGITAL AUDIO CONNECTIVITY
- S/PDIF Inputs:x4 (2 optical, 2 coaxial)
- S/PDIF Outputs:x2 (1 optical, 1 coaxial)
- +4 Outputs:By combining Analog and S/PDIF outputs
- Audio Network:Dual ports (for future use)
ANALOGUE AUDIO CONNECTIVITY
- Microphone input:1x 5 Pin XLR for 3D Microphone
- Balanced inputs:1x Stereo XLR
- Unbalanced inputs:1x Stereo RCA
- Balanced outputs:16x XLR
- Input Impedance:20k Ohms / 10k Ohms
AUDIO PROCESSING
- Data precision:64 bits, floating point
- Max Sampling Rate:Native, up to 96kHz
HARDWARE
- Processor:Intel multi core hyper threaded
- ADC Resolution / Sampling Rate:24 bits/96 kHz
- DAC Resolution / Sampling Rate:24 bits/192 kHz
- A/D Signal-To-Noise Ratio:119 dB (A-Weighted)
- D/A Signal-To-Noise Ratio:118 dB (A-Weighted)
- Reference Level:+18dBu @ 0dBFS (Balanced)
- Clock / Jitter:attenuation > 50 dB above 100Hz
- Cooling system:Custom heat sinks + additional silent fans
- Safety Components:AntiPop relays on each output
POWER SUPPLY
- Power requirement:100 - 240v (auto selecting)
- Power consumption:76W Max
- Thermal conversion:260 BTU/h Max
- Mains fuse:2x 1A slow blow
- Internal PSUs:Separated supplies for Audio and Processing
WEIGHT & DIMENSIONS
- Dimensions (W x H x D) mm:438 x 139 x 430
- Dimensions (W x H x D) inches:17 1/4" x 5 1/2" x 17 15/16"
- Shipping dimensions (L x H x P) cm:74 x 59 x 30
- Weight:11.30kg / 24.9 lbs
- Shipping weight / volume:18.2kg / 0.131 M3
- Rackmounting:3U - Rack Ears Included
WARRANTY
- Standard Warranty:5 year
- Transferable:
